Light Industrial
Panel PC Solution
Panel PC designed to thrive in harsh environments and fit into any scenario.
21.5″ 16:9 Light Industrial
Panel PC Solution
12th Gen Intel® Core™ Processor
Panel PC Solution
- Intel® Elkhart Lake Celeron J6412, 2.6GHz.
Intel® Alder Lake i3-1215U @ 1.2GHz up to 4.4GHz
Intel® Alder Lakei5-1235U @ 1.3GHz up to 4.4 GHz - 10 points PCAP multi-touch support.
- 3 x USB3.1, 3 x USB 2.0, 2 x COM, 1 x DP (by USB-C), 1 x LAN, 1 x CD
- Intel F/W TPM.
- Front IP65, Fanless System & VESA Compliance.
- Core i7 / WIFI / BT module / Peripherals (Project based).

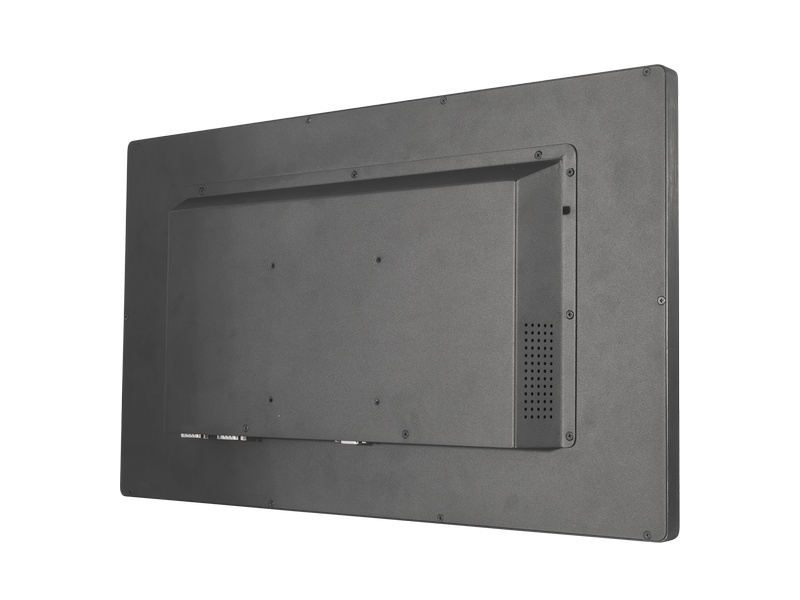

WP-T21 KDS – Kitchen Display System
Versatile Panel PC Solution
The WP-T21 KDS is an efficient and cost effective kitchen display system you can rely on. Our Kitchen Display System (KDS) solution is used in many restaurants to manage orders and streamline kitchen operations. It replaces paper tickets with real-time digital displays, improving order accuracy, efficiency, and communication between front-of-house and back-of-house, with features like real-time updates, analytics, and reduced waste, a KDS enhances the overall customer experience and optimizes kitchen workflows.
WP-T21 PPC is currently deployed globally in various scenarios such as Gas Stations, Jewelers Stores, Pharmacies and Kitchen Display Systems.
Streamline Kitchen Operations
21.5″ of Information Clarity
Our Kitchen Display System delivers 21.5″ Full HD display ensures clear information is available in any area of the kitchen helping restaurants streamline their kitchen operations, increase efficiency, and leading to better customer experiences.
Deliver the right information to the kitchen every time
Deliver the Power to Perform
Intel® Core™
J6412
11th Gen
TigerLake
Fan-less
Architecture
Silent running &
prolonged lifespan
IP65
Front
Protection against condensation
and water spray
Multiple Mount
Options
Wall, Pole & Stand
Mount Configurations
Peripherals
Peripherals for Demanding Kitchens
Peripherals like a bump bar solution can be used in conjunction with the Kitchen Display System (KDS). The specialized keypad/touchpad allows kitchen staff to interact with the KDS system by „bumping“ or marking orders as they are completed. The bump bar provides a tactile interface, enabling kitchen staff to easily navigate through the orders displayed on the KDS screens and mark them as prepared or ready for serving.
This streamlines communication between the kitchen and the serving staff, ensuring efficient order flow and minimizing delays. Our bump bar is designed for durability and can be customizable to match specific kitchen workflows, further enhancing the effectiveness and speed of order management in a busy kitchen environment.
Versatile Mounting Solutions
The Greatest Flexibility for In-kitchen Layout
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options deliver a modern attractive environment for any restaurant.
Available I/O
Click to Englarge
PE24 | PE26
PE22
PE17 + PE18
PE17
Click to Englarge
Specification
PE24 / PE26
| WP-T21 KDS |
||
| Main Board | PE24 | PE26 |
| Processor | Intel® Celeron J6412 |
i5-1235U @ 1.3GHz up to 4.4 GHz i3-1215U @ 1.2GHz up to 4.4GHz *Project Based; Core i7 |
| System Memory | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB. | 1 x 8GB DDR5 SO-DIMM memory Max. support up to 32GB |
| TPM | Intel F/W | |
| Display & Touch | ||
| LCD Size | 21.5″ Full HD 1920 x 1080 16:9 | |
| Resolution | 1920 x 1080 (16:9), Full HD | |
| Brightness | 250cd/m² | |
| Touch | Projected Capacitive Technology 10 point Multi-touch |
|
| Storage & Expansion | ||
|
Storage Expansion |
1 x M.2 M Key 1 x M.2 A,E Key (for WiFi/BT project based) |
|
| Panel I/O | ||
| LAN Port | 1 x Gigabit Ethernet by RJ-45 | |
| USB Port | 3 x USB 3.1 3 x USB 2.0 |
|
| Com Port | 2 x RJ-48 (Support DC+0/5/12V by BIOS default is 0V) | |
| Cash Drawer | 1 x RJ11 (Support DC+12V or 24V(default)port, support 2 cash drawers | |
| Type C | 1 x Type C | |
| Power Switch | 1 x power on/off button | |
| DC Input | 1 x MiniDin 4P (DC +19v only) | |
| OS Support | ||
| Win 10, Linux | ||
| Power Adapter | ||
| Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 65W Adapter (19V Adapter) AC-DC Adapter | Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter | |
| Compliance | ||
| Certifications | CE / FCC Class B | |
| Protection | Front IP65 | |
| Mounting | ||
| Options | Desktop Stand , Wall, Pole (VESA 100 x 100) | |
| Environmental Condition | ||
| Operating | 0°C ~ 40°C (32°F ~ 104°F) | |
| Storage | -10°C ~ 60°C (14°F ~ 140°F | |
| Operating Humidity | 0% ~ 90% Relative Humidity, Noncondensing | |
| Weight | 5.8 Kgs | |
| e-Brochure and Datasheet↓ | ||
Specification
PE17 / PE22
| WP-T21 KDS – PE17/PE22 |
||
| Main Board | PE17 | PE22 |
| Processor | Intel® Kaby Lake i5-7300U Intel® Sky Lake i3-6100U Intel® Sky Lake Celeron® 3955U |
Intel® Core™ i5-8365UE Processor Intel® Core™ i3-8145UE Processor Intel® Celeron® Processor 4305UE |
| System Memory | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. support up to 16GB.. | 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB |
| TPM | Intel F/W | |
| Display & Touch | ||
| LCD Size | 21.5″ Full HD 1920 x 1080 16:9 | |
| Resolution | 1920 x 1080 (16:9), Full HD | |
| Brightness | 250cd/m² | |
| Touch | Projected Capacitive Technology 10 point Multi-touch |
|
| Storage & Expansion | ||
|
Storage Expansion |
1 x SATA III (2.5″) mini-pcie |
1 x M.2 M Key 1 x M.2 A,E Key (for WiFi/BT project based) |
| Panel I/O | ||
| LAN Port | 1 x Gigabit Ethernet by RJ-45 | |
| USB Port | 2 x USB 3.0 | 4 x USB 3.1 2 x USB 2.0 |
| Com Port | 2 | |
| Cash Drawer | 1 | |
| Type C | 1 x Type C | |
| Power Switch | 1 x power on/off button | |
| DC Input | 1 x MiniDin 4P (DC +19v only) | |
| OS Support | ||
| Win 10, Linux | ||
| Power Adapter | ||
| Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter |
||
| Compliance | ||
| Certifications | CE / FCC / LVD | |
| Protection | Front IP65 | |
| Mounting | ||
| Optons | Desktop Stand , Wall, Pole (VESA 100 x 100) | |
| Environmental Condition | ||
| Operating | 0°C ~ 40°C (32°F ~ 104°F) | |
| Storage | -10°C ~ 60°C (14°F ~ 140°F | |
| Operating Humidity | 0% ~ 90% Relative Humidity, Noncondensing | |
| Weight | 5.8 Kgs | |
