Tablet
Allowing you to maximize the value of your mobile solution with affordable enterprise functionality.

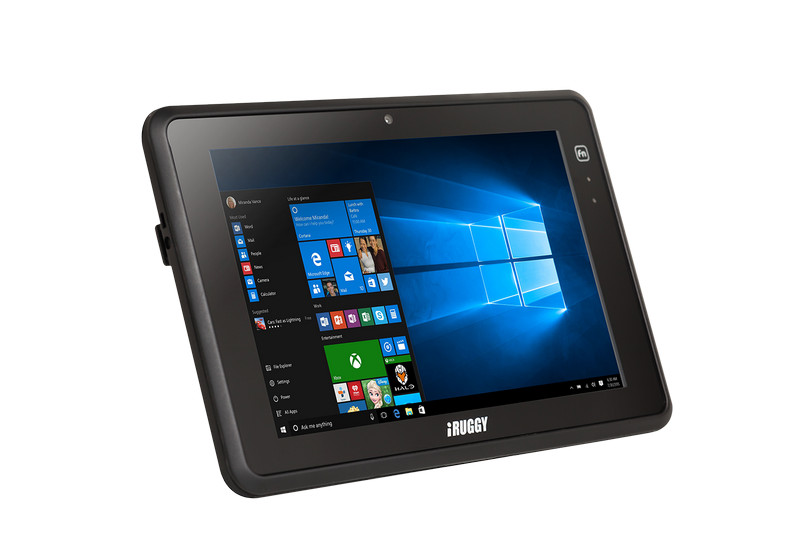

VariPAD W 7”/ 10.1” Tablet
Multi-Applications Expert
- Intel® Atom x7-Z87XX series Quad-Core 1.6GHz (VariPAD W1/W2 Plus)
- Energy saving CPU: Intel Bay Trail T CR Z3735F (VariPAD W1/W2)
- 7″ & 10.1” P-Cap touch screen with IP 54 waterproof certification
- Windows OS (Z87XX/Z3735F) / Android (Z87XX) Available
- Real-time data transmission by WiFi/ Bluetooth
- 8,000mAh swappable battery for heavy work operations
- Built-in Integrated MSR, 5MP camera, NFC Module
- Optional Modules Available: Smart Card Reader, Fingerprint reader, 1D/2D QR Code Scanner
- PB45 I/O Expansion Cradle gives additional connectivity
- Hand strap and holster to ensure security
- Satisfies 1.2m Multiple Drop Test
- Lightweight – Only .66kg (W1) or .93kg (W2)
VariPAD W, Transition Between Static Terminal and Rugged Mobile in Seconds
VariPAD W is the result of extensive R&D into the features that are crucial for the service, retail and hospitality industry. Maximize the value of your mobile solution with affordable enterprise functionality.
Whether being Utilized in a Retail Environment, a Restaurant, or out on the road in the Service industry; VariPAD W provides exceptional connectivity and enterprise functionality.
Energy Efficient Quad Core Performance &
Dual OS Support
To integrate mobility into an existing setup, Poindus VariPAD W Plus is available with either Windows or Android platforms. Quad Core Performance with energy efficiency and enterprise functionality; gives your organization a competitive edge.
Wireless LAN
Bluetooth
NFC
2D Scanner
Extendibility with Multi I/O Expansion Dock Providing Enterprise Class Functionality
The multi PB45 I/O Expansion cradle gives additional connectivity, effectively transforming a mobile solution into a static terminal. Poindus VariPAD W Expansion Dock provides the required connectivity for multiple configurations. The flexible docking station combines all the advantages of simple and quick integration for the mobile tablet into your existing infrastructure.
The PB45 Expansion Dock provides Tablet Lock Security and additional connectivity with USB x2, USB x1 (2A), COM x1 (RJ48), LAN x1 (RJ45), VGA x1 (Optional)
Undock VariPAD W from the POS and Mobilize Your Workforce to Scan, Sell & Assist Customers Directly
Not simply a POS tablet, a Mobile Sales Assistant for direct interaction with customers on the shop floor; or store room as an Inventory/Stock-taking Device with integrated 1D/2D Scanner; or an Order Entry Device (eg. Pub with Beer Garden). VariPAD maintains connectivity by Wi-Fi 2.4GHz or less crowded 5GHz spectrum. External peripheral connectivity (eg. Mobile Receipt Printer) via Bluetooth® 4.0+LE.
VariPAD 2nd Cradle is available for Poindus All-In-One POS Terminals and supports continual charging and allows use as a Customer-facing 2nd Display.
Operational Efficiency with Mobility & Long Life Swappable Battery Packs for 24/7 Operations
Enhance operational efficiency with this durable tablet that takes on your diverse working environment with ease. VariPAD W’s 8,000mAh Battery Pack provides long life and is swappable for 24/7 operations.
For Usage that requires the VariPAD out of the Charging Cradle 6+ hours, Poindus can supply the 5-in-1 Battery Charger for charging 5 spare batteries simultaneously.
Enterprise Mobility offers your management and workforce real-time Communications on the ground.
Specification
| VariPad W1、VariPad W2 | VariPad W1 Plus 、 VariPad W2 Plus | ||
| Main Board | VariPad W1/W2 | VariPad W1/W2 Plus |
| Processor | Intel® Bay-Trail Z3735F 1.83GHz | Intel® Atom x7-Z87XX series Quad-Core 1.6GHz |
| System Memory | 2GB LPDDR3 | 4GB LPDDR3 |
| Storage | 32GB eMMC (embedded MultiMedia Card) | 64GB eMMC |
| Display & Touch | ||
| LCD Size | W1：7″ | |
| W2：10.1″ | ||
| Brightness | W1：300 nits | |
| W2：370 nits | ||
| Resolution | W1：1280 x 800 (WXGA) | |
| W2：1920 x 1200 (WUXGA) AUO | ||
| Touch Technology | P-CAP 5 points Multi-touch EET | |
| Wireless Networking | ||
| Wireless LAN | 802.11 a/b/g/n, ac 2.4G / 5GHz (R ealtek WU-A101B-S) | |
| Bluetooth | 4.0+LE, Clas s 2 (Bluetooth® Low Energy) | |
| NFC | YES | |
| I/O & Expansion | ||
| DC Input | 6 pin | |
| Power Switch | 1 x power on / off switch button | |
| Speaker | W1：1W x 1 Speaker | |
| W2：1W x 2 Speaker | ||
| Control / Indicator | ||
| Power Button | 1 | |
| Sensor | G-sensor, Ambient Light Sensor (NO GPS) | |
| Vibration | Built-in vibrating motor | |
| LED Indicator | 1 (Battery status indicator) | |
| Camera | 5M pixel ( Rear side) | 8M pixel (Rear side) |
| Peripherals | ||
| MSR | 3 Tracks MSR USB | |
| Barcode Scanner | 1D/2D Bar code Scanner USB honeywell | |
| Combo Module | Smart IC Card Reader (Idtech/mini smart II)+ 1D/2D Barcode Scanner (Combo Module Optional) | |
| Hand strap | 1 | |
| Holster | Holster (Optional) | |
| Battery & Power | ||
| Battery | 8000 mAh, 3.7V, 29.6 Wh | |
| Power Adapter | 10W / 5V | 12W / 5V |
| Cradle | ||
| USB Port | Micro-USB 2.0 x 1 (OTG) | |
| OS Support | ||
| Operating System | Windows 10 IoT Enterprise |
Windows 10 IoT Enterprise Android 7.0 |
| Compliance | ||
| Certifications | CE, FCC, RoHS | FCC Class B / CE Mark / CE, FCC, RoHS |
| Fall Security | IP54 (display side), 1.2 M drop, 1 drop per side at 25˚C |
|
| Color | ||
| Black | ||
| Dimension( Wx H x D ) | ||
| W1：204 x 128 x 35.3 mm | ||
| W2：268 x 176 x 35.8 mm | ||
| Weight | ||
| W1：665g (1.47lbs), Max 690g (1.52lbs) (with all peripherals) | ||
| W2：930g (2.08lbs), Max 990g (2.18lbs) (with all peripherals) | ||
| Carton | ||
| L 400 x W 220 x H100 mm | ||
| Environmental | ||
| Storage Temperature | As Shown Below | 0º ~ 40ºC (32º ~104ºF,Not in charging mode), 0° ~ 35°C (32° ~ 95°F,running charging mode) |
| Operating Condition | 0˚C ~ 40˚C, 20% – 80% RH, non-condensing | 20% ~ 80% RH non-condensing |
| Storage Condition | -10˚C ~ 45˚C, 10% ~ 90% RH, non-condensing | 20% ~ 80% RH non-condensing |
| Optional Accessories | ||
| 2nd Display Bracket |
W1：Micro-USB 2.0 x 1 | W2：Micro-USB 2.0 x 1 |
| Vari / Tori seires | Vari / Tori seires | |
